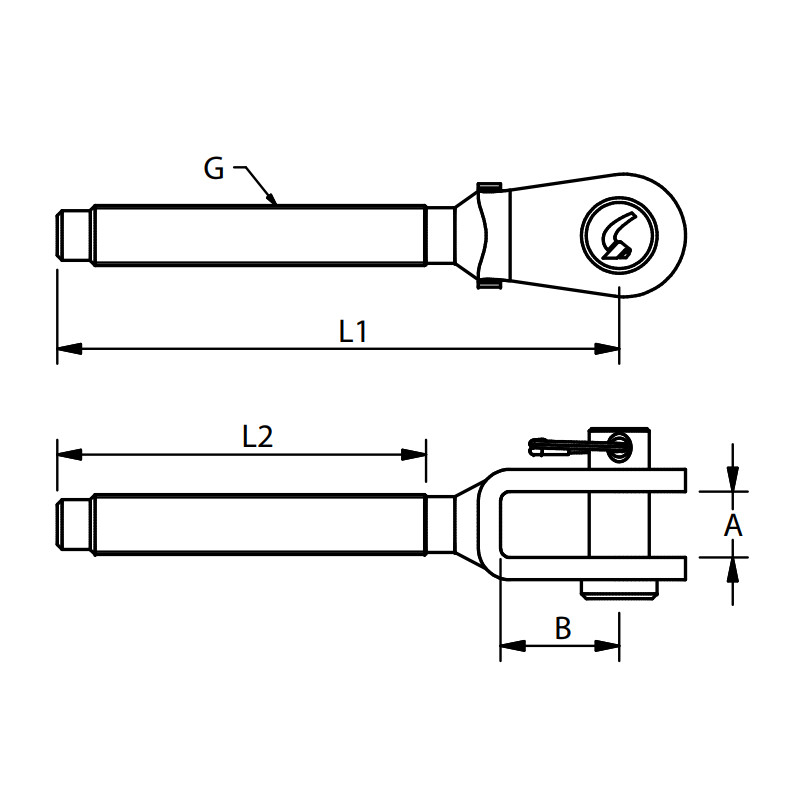

| Part | LH/RH Thread | G | Pin Ø mm | A mm |
B mm |
L1 mm |
L2 mm |
Break Load Kg |
RRP Inc VAT |
Unit | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BW-021212-AB | RH | 1/2 | 12.7 | 14 | 25 | 119 | 80 | 6100 | £22.62 | EACH | |
| BW-021212-B | RH | M12 | 12 | 14 | 25 | 119 | 80 | 5000 | £22.62 | EACH | |
| BW-021212-XB | RH | M12 | 12 | 18 | 33 | 129 | 80 | 5000 | £29.02 | EACH | |
| BW-021214-B | RH | M14 | 12 | 18 | 25 | 137 | 90 | 6900 | £30.98 | EACH | |
| BW-021216-AB | RH | 5/8 | 16 | 20 | 41 | 199 | 100 | 9900 | £48.12 | EACH | |
| BW-021216-B | RH | M16 | 14 | 18 | 33 | 151 | 100 | 9400 | £48.12 | EACH | |
| BW-031212-AB | LH | 1/2 | 12.7 | 14 | 25 | 119 | 80 | 6100 | £22.62 | EACH | |
| BW-031212-B | LH | M12 | 12 | 14 | 25 | 119 | 80 | 5000 | £22.62 | EACH | |
| BW-031212-XB | LH | M12 | 12 | 18 | 33 | 129 | 80 | 5000 | £29.02 | EACH | |
| BW-031214-B | LH | M14 | 12 | 18 | 25 | 137 | 90 | 6900 | £30.98 | EACH | |
| BW-031216-AB | LH | 5/8 | 16 | 20 | 41 | 199 | 100 | 9900 | £48.12 | EACH | |
| BW-031216-B | LH | M16 | 14 | 18 | 33 | 151 | 100 | 9400 | £48.12 | EACH |
