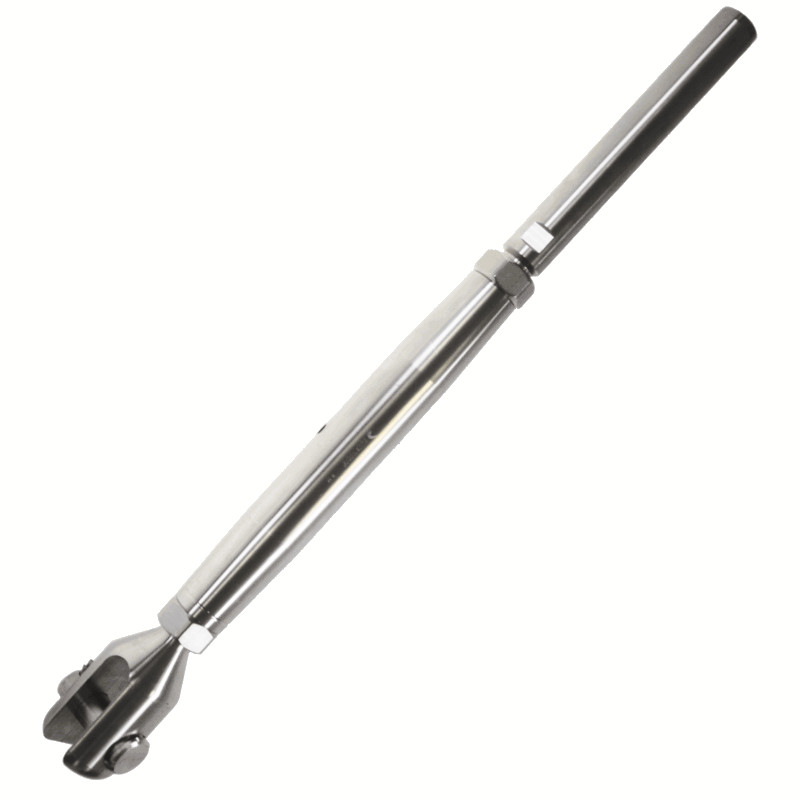

Blue Wave Metric Machined Fork & Swage Rigging Screw



Metric machined fork and swage rigging screw.

Metric thread.

Note: All break loads are determined by clevis pin and thread.

High Polished Stainless Steel (AISI 316)

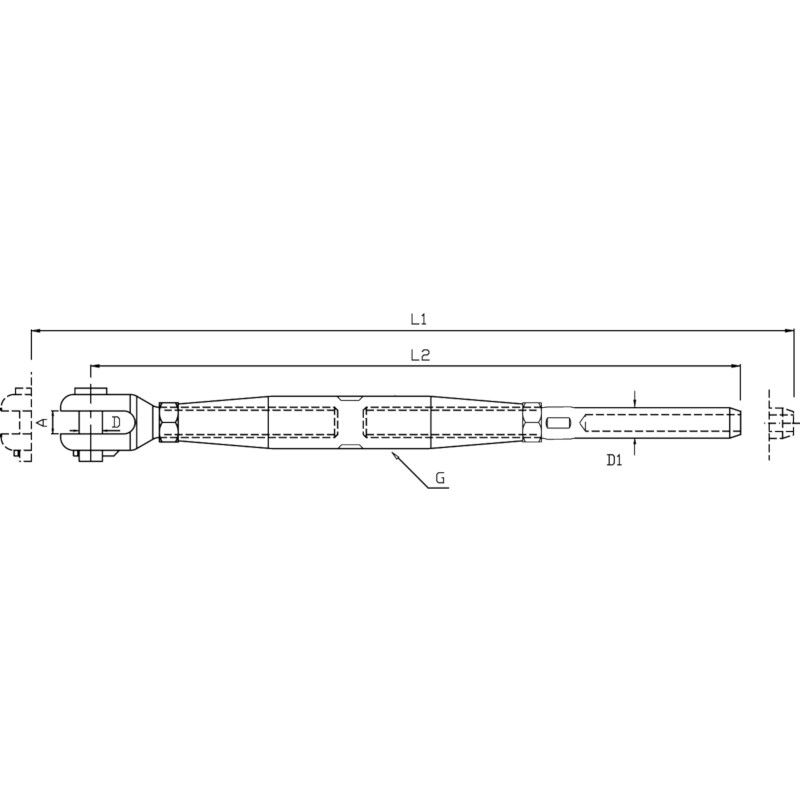

spec sheet Rigging Screw Metric Blue Wave
Part G
Metric		 Wire Ø
mm		 Pin Ø
mm		 A
mm		 B
mm		 D
mm		 L1
mm		 L2
mm		 Break Load
Kg		 RRP
Inc VAT		 Unit
BW-741220 M20 12 19 20 45 20 646 492 11400 £718.93 EACH
BW-741422 M22 14 22 22 49 25 720 540 15000 £732.41 EACH
BW-741622 M22 16 22 22 49 28 745 565 15000 £777.92 EACH
BW-741624 M24 16 25 25 52 28 863 630 18000 £905.65 EACH
BW-741927 M27 19 28 30 55 34.5 963 728 23000 £1,284.02 EACH
BW-742230 M30 22 32 35 67 40.5 1082 820 28000 £1,757.77 EACH
BW-742636 M36 26 35 35 67 46 1186 912 41000 £2,746.48 EACH
