UNF Calibrated MRT Toggle-Swage Rigging Screw

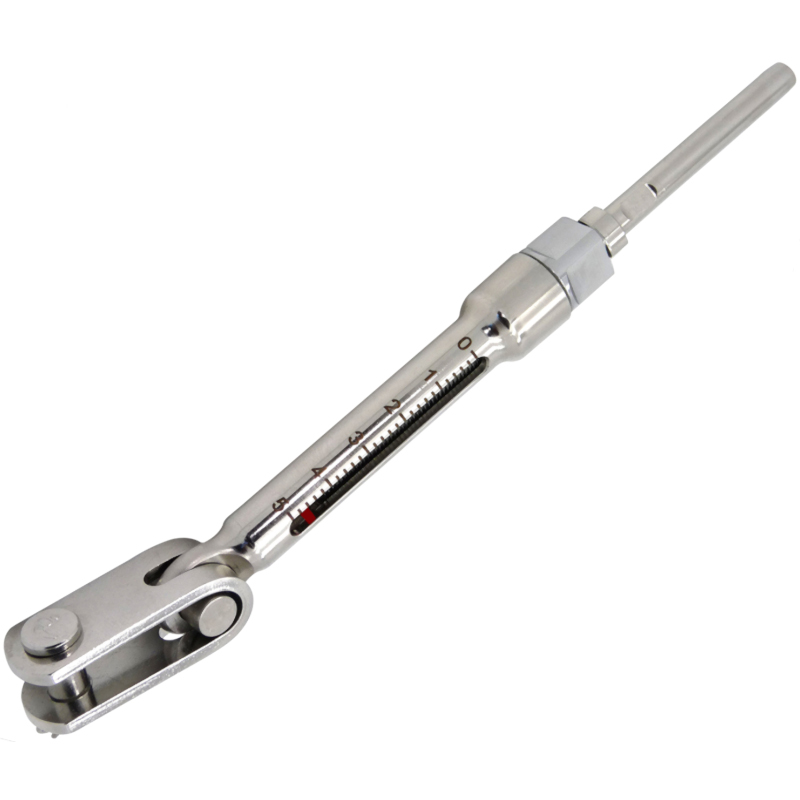

Blue Wave UNF Calibrated MRT Toggle-Swage Rigging Screw

A highly sophisticated calibrated rigging screw, the body is engraved with a calibration scale for fast and accurate adjustment of the rig tension. It features an adjustment nut in chromed bronze and an extra length thread terminal.

These features allow you to change your mast position quickly from heavy to light settings according to the changing wind strength.

Stainless Steel AISI 316

Part LH/RH Thread Thread Wire Dia
mm
Pin Dia
mm
Adjust
mm
L min
mm
L max
mm
B/Load
Kg.
BW-MRT03014 RH 1/4 ins 3 6.35 40 193 233 1300
BW-MRT04014 RH 1/4 ins 4 6.35 40 216 256 1300
BW-MRT04516 RH 5/16 ins 4 8.0 50 221 271 1700
BW-MRT05516 RH 5/16 ins 5 8.0 50 227 277 2200
BW-MRT05038 RH 3/8 ins 5 9.5 60 263 323 2400
BW-MRT06012 RH 1/2 ins 6 11.0 70 283 353 5400
BW-MRT06716 RH 7/16 ins 6 11.0 70 283 353 4600
BW-MRT07716 RH 7/16 ins 7 11.0 70 305 375 4800
