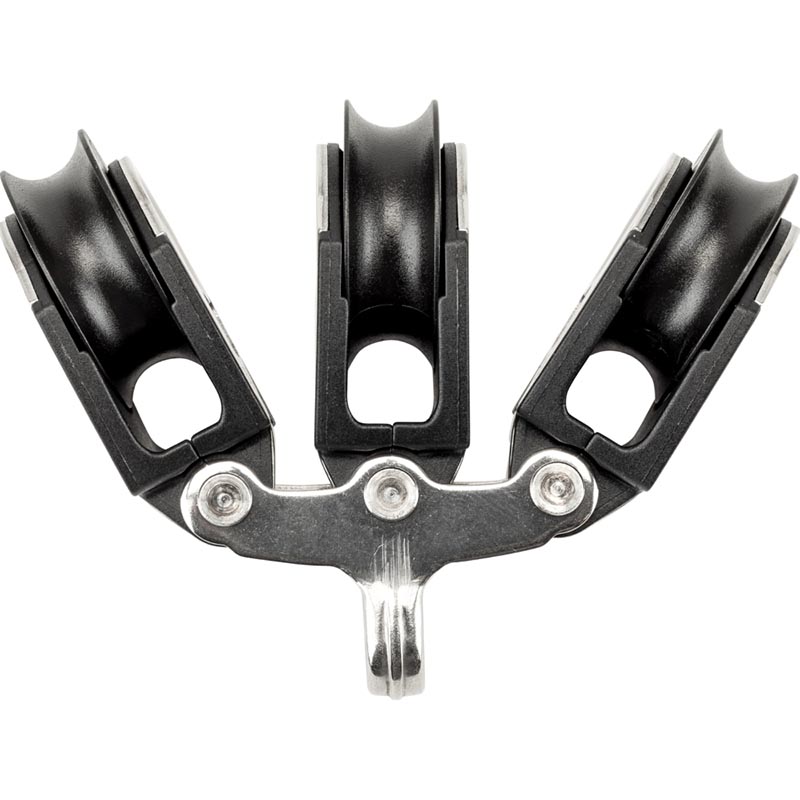

Allen 30mm Triple Articulating Block with Fixed Eye



30mm Triple Articulating Block with Fixed Eye.

This triple articulating block is very similar to the standard triple except the central rivet and spacing mouldings have been removed. Each block can articulate to the correct lead angle allowing the rope to run more centrally around the sheaves. The result is a reduction in friction as well as making the block last longer due to less wear on the cheeks.

  • Blocks articulate individually
  • Allows better alignment to rope
  • Line friendly soft contours and articulation
  • Stainless steel cheeks and inner bearing system handles maximum loads
  • Central hole for tie-on becket
  • Available with double or triple sheaves



spec sheet Blocks Ball Bearing Allen
Part Description Length
mm		 Line Ø
mm		 Break Load
kg		 Max Dynamic
Load		 Weight
gm		 RRP
Inc VAT		 Unit
AL-2034-A Triple Articulating 63 5 - 8 1750 490 83 £64.68 EACH
