Allen High Load Thimbles


>


High Load Thimbles



Allen High Load Thimbles



Allen Brothers have expanded their range of high load aluminium thimbles the new range is available in a series of eye catching colours and various sizes which can easily be customised.

The use of high load, low friction thimbles where blocks may have been used in the past, has simplified areas of rig tensioning such as kicker or down-haul systems.

In conjunction with Dyneema® lines, they allow far higher loads and enhanced performance. The new Allen range of HL thimbles feature CNC turned 6082 aluminium, anodised, PTFE coated rings with safe working loads of between 300-1000kg.



Part Description Colour Spliced Line
Ø mm		 ID
Ø mm		 OD
Ø mm		 WL
Kg		 RRP
Inc VAT		 Unit
AL-0082-08 8mm High Load Thimble - Stainless Steel - 4 4 8 150 £4.14 EACH
AL-0082-10 10mm High Load Thimble - Stainless Steel - 5 6 10 250 £4.21 EACH
AL-0082-14 14mm High Load Thimble - Stainless Steel - 6 8 14 300 £4.26 EACH
AL-0087-15-BK 15mm High Load Thimble - Aluminium Black 4 6 15 300 £7.79 EACH
AL-0087-15-BU 15mm High Load Thimble - Aluminium Blue 4 6 15 300 £7.79 EACH
AL-0087-15-GO 15mm High Load Thimble - Aluminium Gold 4 6 15 300 £7.79 EACH
AL-0087-15-OR 15mm High Load Thimble - Aluminium Orange 4 6 15 300 £7.79 EACH
AL-0087-15-PP 15mm High Load Thimble - Aluminium Purple 4 6 15 300 £7.79 EACH
AL-0087-15-SV 15mm High Load Thimble - Aluminium Silver 4 6 15 300 £7.79 EACH
AL-0087-20-BK 20mm High Load Thimble - Aluminium Black 5 8 20 400 £8.87 EACH
AL-0087-20-BU 20mm High Load Thimble - Aluminium Blue 5 8 20 400 £8.87 EACH
AL-0087-20-GO 20mm High Load Thimble - Aluminium Gold 5 8 20 400 £8.87 EACH
AL-0087-20-OR 20mm High Load Thimble - Aluminium Orange 5 8 20 400 £8.87 EACH
AL-0087-20-PP 20mm High Load Thimble - Aluminium Purple 5 8 20 400 £8.87 EACH
AL-0087-20-SV 20mm High Load Thimble - Aluminium Silver 5 8 20 400 £8.87 EACH
AL-0087 25mm H/L Thimble - Aluminium deep groove Black 8 8 25 800 £9.71 EACH
AL-0087-25-BK 25mm High Load Thimble - Aluminium Black 6 10 25 800 £9.55 EACH
AL-0087-25-BU 25mm High Load Thimble - Aluminium Blue 6 10 25 800 £9.55 EACH
AL-0087-25-GO 25mm High Load Thimble - Aluminium Gold 6 10 25 800 £9.55 EACH
AL-0087-25-OR 25mm High Load Thimble - Aluminium Orange 6 10 25 800 £9.55 EACH
AL-0087-25-PP 25mm High Load Thimble - Aluminium Purple 6 10 25 800 £9.55 EACH
AL-0087-25-SV 25mm High Load Thimble - Aluminium Silver 6 10 25 800 £9.55 EACH
AL-0087-30-BK 30mm High Load Thimble - Aluminium Black 8 12 30 1000 £10.76 EACH
AL-0087-30-BU 30mm High Load Thimble - Aluminium Blue 8 12 30 1000 £10.76 EACH
AL-0087-30-GO 30mm High Load Thimble - Aluminium Gold 8 12 30 1000 £10.76 EACH
AL-0087-30-OR 30mm High Load Thimble - Aluminium Orange 8 12 30 1000 £10.76 EACH
AL-0087-30-PP 30mm High Load Thimble - Aluminium Purple 8 12 30 1000 £10.76 EACH
AL-0087-30-SV 30mm High Load Thimble - Aluminium Silver 8 12 30 1000 £10.76 EACH
AL-0087-35-GO 35mm High Load Thimble - Aluminium Gold 10 15 35 1500 £11.09 EACH
AL-0087-35-OR 35mm High Load Thimble - Aluminium Orange 10 15 35 1500 £11.09 EACH
AL-0087-35-PP 35mm High Load Thimble - Aluminium Purple 10 15 35 1500 £11.09 EACH
AL-0087-35-SV 35mm High Load Thimble - Aluminium Silver 10 15 35 1500 £11.09 EACH
AL-0087-35-BK 35mm High Load Thimble - Aluminium Black 10 15 35 1500 £11.09 EACH
AL-0087-35-BU 35mm High Load Thimble - Aluminium Blue 10 15 35 1500 £11.09 EACH

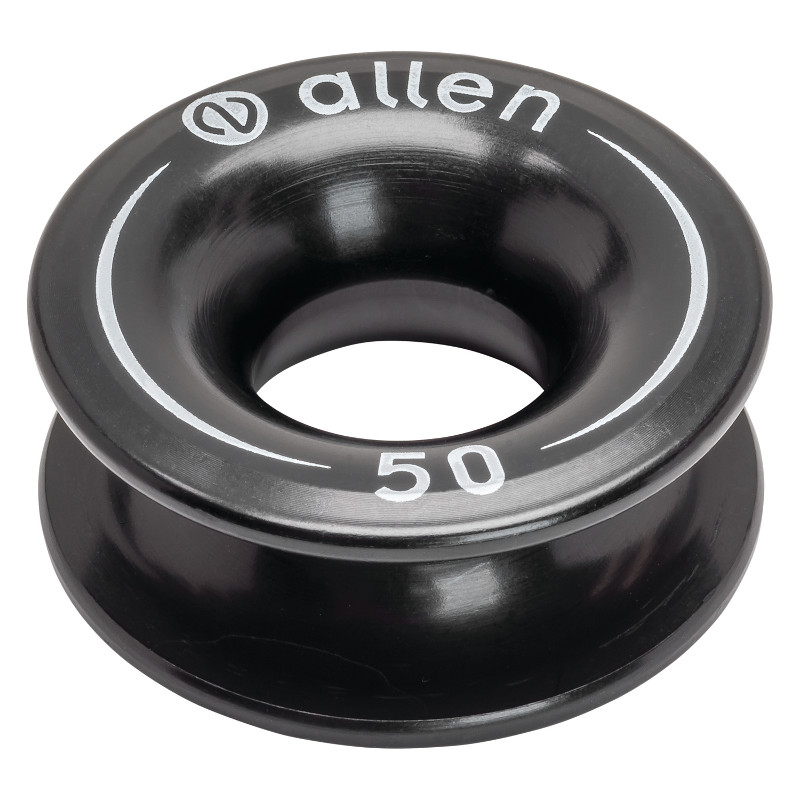

AL-0087-50-BK 50mm High Load Thimble - Aluminium Black 14 20 50 2000 £18.60 EACH
AL-0087-50-BU 50mm High Load Thimble - Aluminium Blue 14 20 50 2000 £18.60 EACH
AL-0087-50-GO 50mm High Load Thimble - Aluminium Gold 14 20 50 2000 £18.60 EACH
AL-0087-50-OR 50mm High Load Thimble - Aluminium Orange 14 20 50 2000 £18.60 EACH
AL-0087-50-PP 50mm High Load Thimble - Aluminium Purple 14 20 50 2000 £18.60 EACH
AL-0087-50-SV 50mm High Load Thimble - Aluminium Silver 14 20 50 2000 £18.60 EACH
AL-0087-75-BK 75mm High Load Thimble Aluminium Black 17 28 75 2500 £42.80 EACH
AL-0087-90-BK 90mm High Load Thimble Aluminium Black 20 28 90 2500 £49.46 EACH
