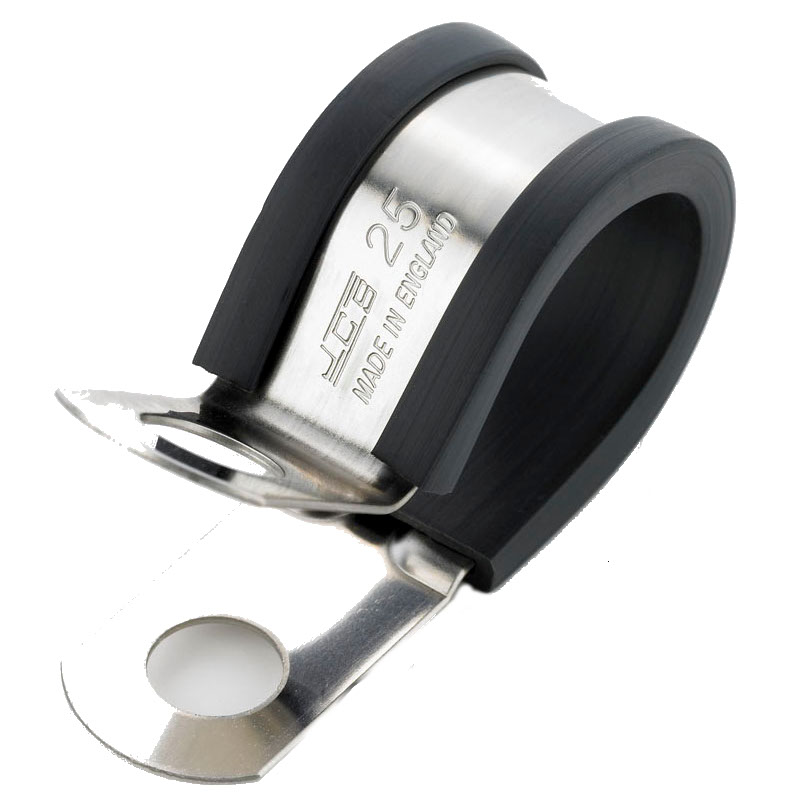

JCS Hi-Torque P-Clips



JCS rubber-lined P-Clips are tough and durable, providing a simple and secure fixing solution for even the most challenging of environments.

The standard P Clip is supplied with TPE rubber liner which prevents chafing or damage to the surface of the item being clamped.

  • Snug fitting TPE rubber liner absorbs vibration and prevents chafing of pipe or cable, and water penetration into the clamping area.
  • The P-CLIP band has a special strengthening rib which keeps the clips flush with the surface to which it is bolted.
  • Made from Marine grade 18/8 Stainless Steel
  • The upper hole is elongated to help line up the fixing bolt when fitting.
  • The TPE liners are UV and ozone resistant.
  • Fixing nuts and bolts are not supplied



Part Description Closed
Diameter mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
RRP
Inc VAT
Unit
JC-PCSR05 5MM X M6 S/S P-CLIP 5 6 15 0.7 6.6 12.6 16 7 £24.35 25
JC-PCSR06 6MM X M6 S/S P-CLIP 6 7 16 0.7 6.6 12.6 16 7 £24.74 25
JC-PCSR08 8MM X M6 S/S P-CLIP 8 8 17 0.7 6.6 12.6 16 7 £25.31 25
JC-PCSR10 10MM X M6 S/S P-CLIP 10 9 18 0.7 6.6 12.6 16 7 £25.93 25
JC-PCSR13 13MM X M6 S/S P-CLIP 13 10 20 0.9 6.6 12.6 16 7 £26.93 25
JC-PCSR16 16MM X M6 S/S P-CLIP 16 12 21 0.9 6.6 12.6 16 7 £28.08 25
JC-PCSR19 19MM X M6 S/S P-CLIP 19 13 23 0.9 6.6 12.6 16 7 £29.94 25
JC-PCSR21 21MM X M6 S/S P-CLIP 21 15 24 0.9 6.6 12.6 16 7 £31.18 25
JC-PCSR25 25MM X M6 S/S P-CLIP 25 17 26 0.9 6.6 12.6 16 7 £32.95 25
JC-PCSR29 29MM X M6 S/S P-CLIP 29 19 28 0.9 6.6 12.6 16 7 £34.46 25
JC-PCSR35 35MM X M6 S/S P-CLIP 35 22 31 0.9 6.6 12.6 16 7 £38.27 25
JC-PCSRAB P-CLIP ASSORTED BOX OF 104 S/S CLIP - - - - - - - - £151.07 EACH


An assorted box of 104 Hi-Grip stainless steel 18/8 marine quality (BS304) P-Clips.
Useful as a display on a shop counter or in a workshop sizes ranging from 5 - 35mm.

Consisting of the following quantities :

14 x 5mm
14 x 6mm
12 x 8mm
10 x 10mm
8 x 13mm
8 x 16mm
6 x 19mm
8 x 21mm
6 x 25mm
10 x 29mm
8 x 35mm
