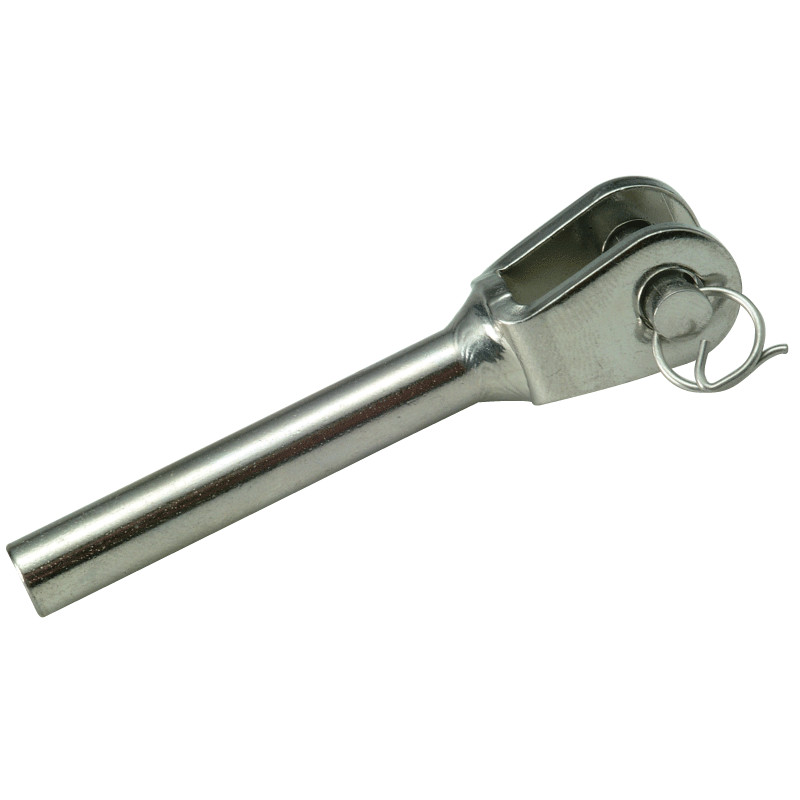

Blue Wave WDS Fork Int Thread Welded



WDS welded fork, internal thread.

Stainless Steel AISI 316.



spec sheet Fork Internal Thread - Architectural Blue Wave
Part Thread
RH/LH		 Wire Dia
mm		 G
Metric		 L1
mm		 L2
mm		 L3
mm		 D1
mm		 D2
mm		 A
mm		 Break Load
kg		 RRP
Inc VAT		 Unit
BW-A340503 RH 3.0 M5 59.0 25.0 12.0 5.0 7.10 7.5 800 £11.74 EACH
BW-A340504 RH 4.0 M6 67.0 30.0 12.0 5.0 8.00 7.5 1000 £11.99 EACH
BW-A340605 RH 6.0 M6 68.0 30.0 13.0 6.0 8.00 9.5 1300 £12.47 EACH
BW-A340806 RH 6.0 M8 79.0 35.0 15.0 8.0 11.00 11.0 2350 £17.66 EACH
BW-A350503 LH 3.0 M5 59.0 25.0 12.0 5.0 7.13 7.5 800 £11.74 EACH
BW-A350504 LH 4.0 M6 67.0 30.0 12.0 5.0 8.00 7.5 1000 £11.99 EACH
BW-A350605 LH 5.0 M6 68.0 30.0 13.0 6.0 8.00 9.5 1300 £12.47 EACH
BW-A350806 LH 6.0 M8 79.0 35.0 15.0 8.0 11.00 11.0 2350 £17.66 EACH
