Blue Wave WDS Internal Threaded Swage Terminal



WDS internal threaded swage terminal.

The small inside thread terminals are for lighter architectural fixing of wires. The terminals are available with the left handed and right handed threads, with dimensions reduced to a minimum.

Stainless Steel AISI 316.

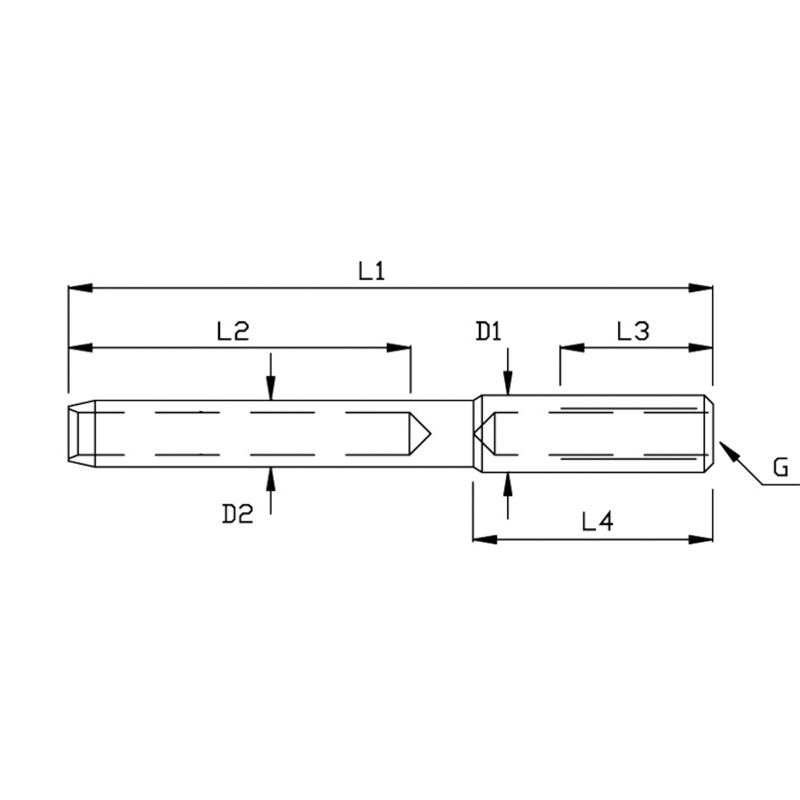

spec sheet Interanl Thread Terminal - Architectural Blue Wave
Part Thread
RH/LH		 G
Metric		 Wire Dia.
mm		 L1
mm		 L2
mm		 L3
mm		 L4
mm		 D1
mm		 D2
mm		 Break Load
Kg		 RRP
Inc VAT		 Unit
BW-A140503 RH M5 3.0 65 25 20 35 7.13 5.50 360 £8.54 EACH
BW-A140604 RH M6 4.0 65 25 20 35 8.00 6.35 640 £8.70 EACH
BW-A140605 RH M6 5.0 70 30 20 30 8.00 7.50 1000 £8.89 EACH
BW-A140806 RH M8 6.0 85 40 25 40 11.00 9.00 1400 £11.57 EACH
BW-A150503 LH M5 3.0 65 25 20 35 7.13 5.50 360 £8.54 EACH
BW-A150604 LH M6 4.0 65 25 20 35 8.00 6.35 640 £8.70 EACH
BW-A150605 LH M6 5.0 70 30 20 30 8.00 7.50 1000 £8.89 EACH
BW-A150806 LH M8 6.0 85 40 25 40 11.00 9.00 1400 £11.57 EACH
