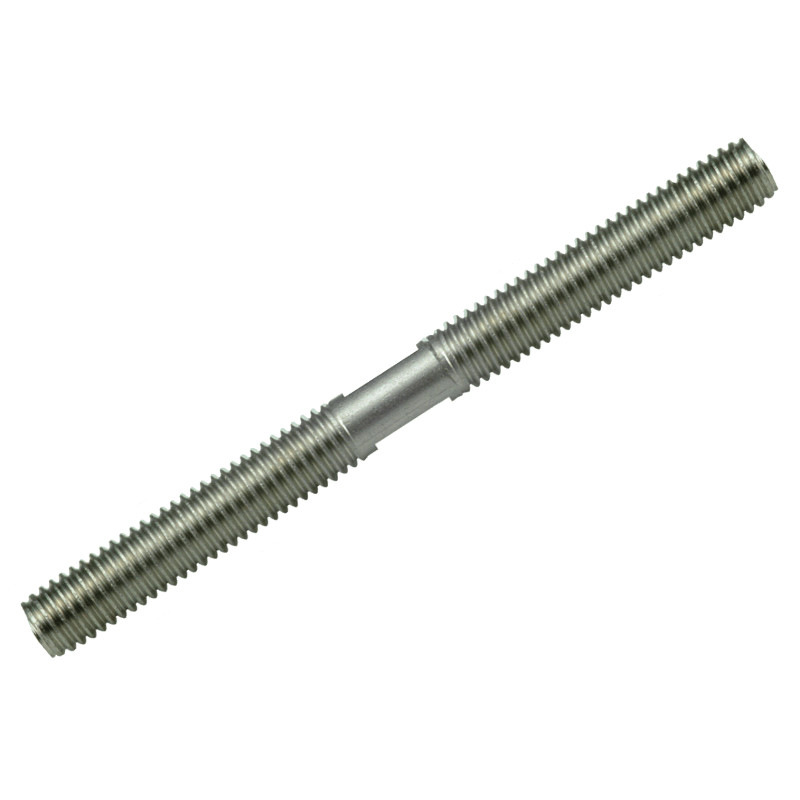

Blue Wave WDS Double Thread Pin
WDS Double thread pin.
Stainless Steel AISI 316.

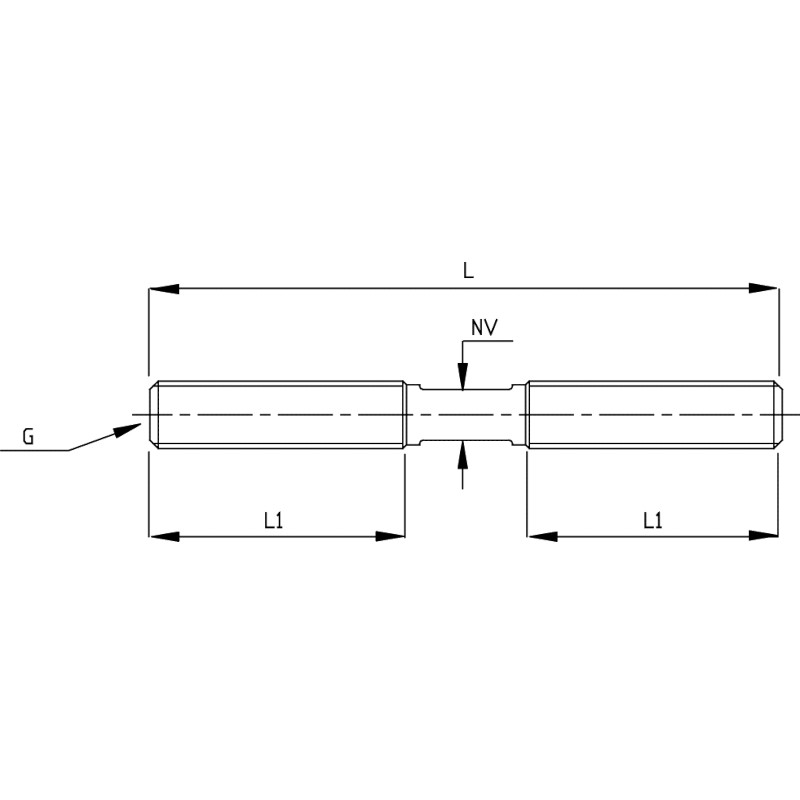

| Part | Thread RH/LH |
L mm |
L1 mm |
NV mm |
G Metric |
RRP Inc VAT |
Unit | |
|---|---|---|---|---|---|---|---|---|
| BW-A392405 | RH + LH | 60.0 | 24.0 | 3.0 | M5 | £4.82 | EACH | |
| BW-900305-HV | RH + LH | 70 | 30 | 3.0 | M5 | £11.21 | EACH | |
| BW-A392706 | RH + LH | 66.0 | 27.0 | 4.0 | M6 | £5.26 | EACH | |
| BW-900406-HV | RH + LH | 106 | 48 | 4.5 | M6 | £12.88 | EACH | |
| BW-A393008 | RH + LH | 75.0 | 30.0 | 6.0 | M8 | £6.07 | EACH | |
| BW-900408-HV | RH + LH | 129 | 57 | 6.0 | M8 | £15.77 | EACH | |
| BW-900610-HV | RH + LH | 145 | 63 | 7.0 | M10 | £17.92 | EACH | |
| BW-900712-HV | RH + LH | 180 | 80 | 9.0 | M12 | £22.63 | EACH | |
| BW-900814-HV | RH + LH | 198 | 89 | 11.0 | M14 | £28.02 | EACH |
