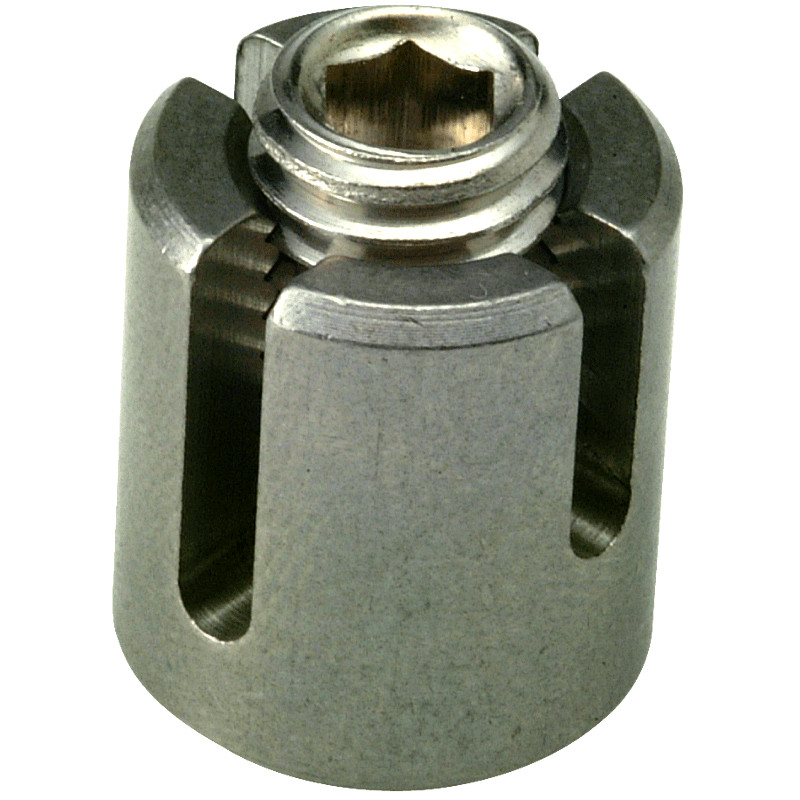

Blue Wave WDS Net Clips Fixed
WDS Net Clips Fixed
WDS net clips are used where crossed wires need connection e.g. for wire nets.
They are supplied in two versions - one with through-going thread and one without.
Stainless steel AISI 316.

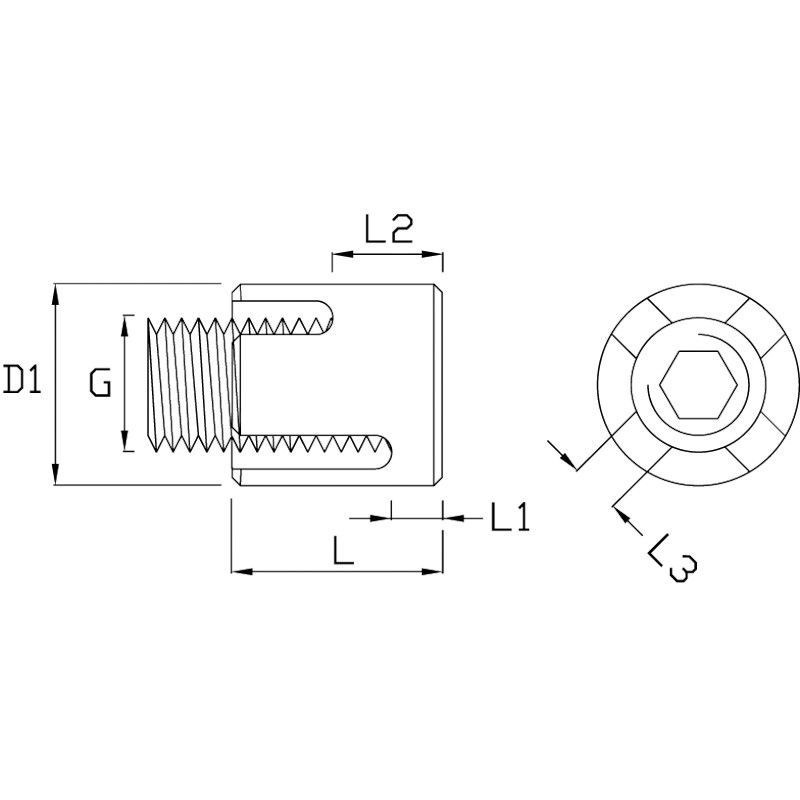

| Part | Type | Wire Dia mm |
G Metric |
D1 mm |
L mm |
L1 mm |
L2 mm |
L3 mm |
Kg/100 | RRP Inc VAT |
Unit | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BW-A600003C | Closed End | 3 | M10 | 17 | 19 | 5 | 8 | 3.2 | 2.4 | £5.98 | EACH | |
| BW-A600004C | Closed End | 4 | M12 | 20 | 21 | 5 | 8 | 4.2 | 3.6 | £6.26 | EACH | |
| BW-A600005C | Closed End | 5 | M12 | 20 | 23 | 5 | 10 | 5.2 | 3.6 | £7.03 | EACH | |
| BW-A600006C | Closed End | 6 | M12 | 20 | 25 | 5 | 10 | 6.2 | 5.8 | £7.18 | EACH | |
| BW-A600008C | Closed End | 8 | M16 | 26 | 32 | 8 | 15 | 8.3 | 7.7 | £12.30 | EACH | |
| BW-A610003C | Through Thread | 3 | M10 | 17 | 19 | 5 | 8 | 3.2 | 2.4 | £9.00 | EACH | |
| BW-A610004C | Through Thread | 4 | M12 | 20 | 21 | 5 | 8 | 4.2 | 3.6 | £9.65 | EACH | |
| BW-A610005C | Through Thread | 5 | M12 | 20 | 23 | 5 | 10 | 5.2 | 3.6 | £11.26 | EACH | |
| BW-A610006C | Through Thread | 6 | M12 | 20 | 25 | 5 | 10 | 6.2 | 5.8 | £12.24 | EACH | |
| BW-A610008C | Through Thread | 8 | M16 | 26 | 32 | 8 | 15 | 8.3 | 7.7 | £14.99 | EACH |
