Allen Vang King

Vang King and Vang King for Melges 24

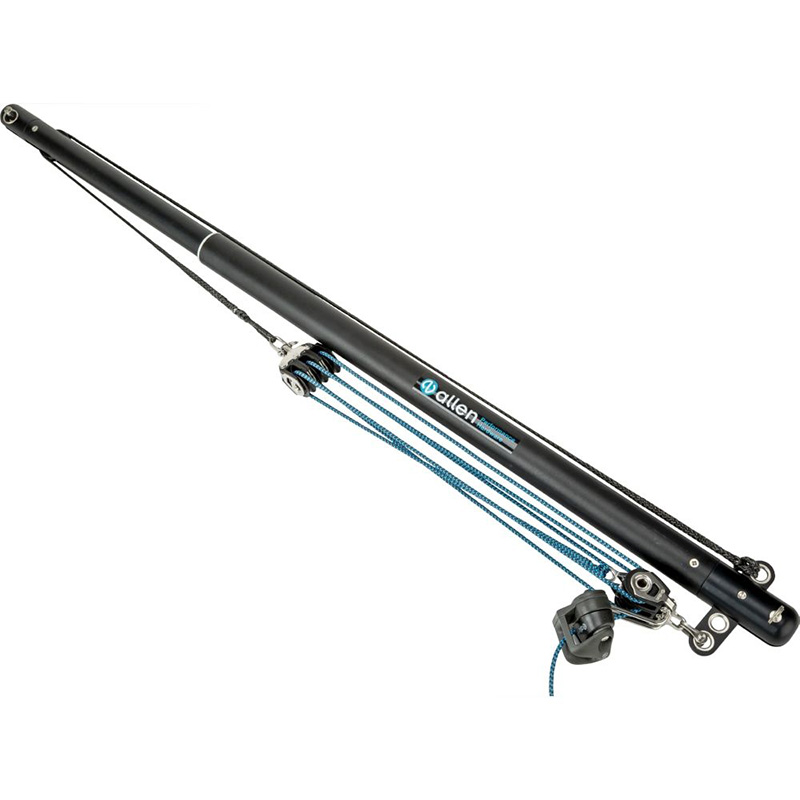

The Allen Vang King is a telescopic gas strut, designed to be used as a boom support system and combined with a purchase system to create the Vang control.

The Vang King features a plain bearing 37.8mm sheave in the top end of the strut which has been specifically designed to take the load required on yachts up to 26ft.

At the base of the Vang King is our unique attachment post. It has three holes which are reinforced with stainless-steel ferrules. These holes can be used to dead-end rope or shackle blocks too.

The gas strut can be adjusted to reduce the return pressure. Simply remove the screws holding the base plug in position and then remove the plug. Using an Allen key open the grub screw to allow the pressure to reduce. Blocks and rope are not included.

Also available is a Melges 24 specific. This version comes with a pre-set 4mm dyneema primary lines spliced onto an AL-2034 (30mm Triple Dynamic Block). Also included is the bottom block - AL-2037 (30mm Triple Dynamic Block with cam cleat and becket). The main control line is not included.

Please note:

This is a one-way process. You cannot reinflate the strut.

spec sheet Vang King Boom Strut Allen

Part	Description	Max Return Pressure kg	Pin Ø mm	Max Line Ø mm	Stroke mm	Pin Center Length closed mm	Pin Center Length open mm	Boat Length ft	Weight g	RRP Inc VAT	Unit
AL-1714	Size 1 Vang King	16 - 26	8	122	782	982	9.3	200	1270	£672.27	each
AL-1715	Size 2 Vang King	16 - 26	8	122	1104	1304	9.3	200	1300	£781.70	each
AL-1715-M24	Size 2 Vang King For Melges 24	16 - 26	8	122	1104	1304	9.3	200	1300	£816.14	each
