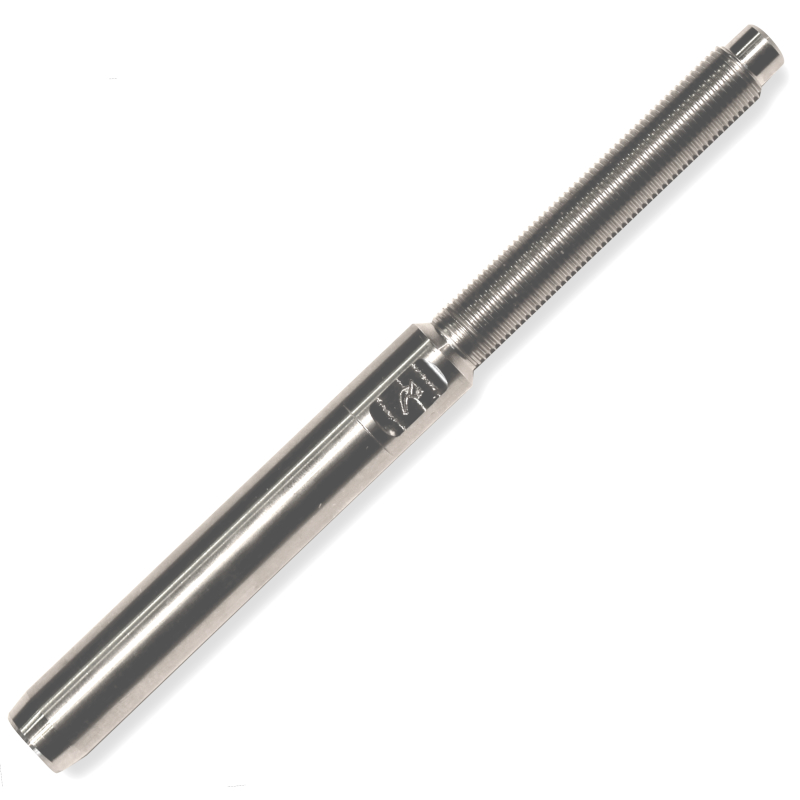

Blue Wave Swage Stud Terminal



Swage stud wire terminal.

Electro polished stainless steel AISI 316L.

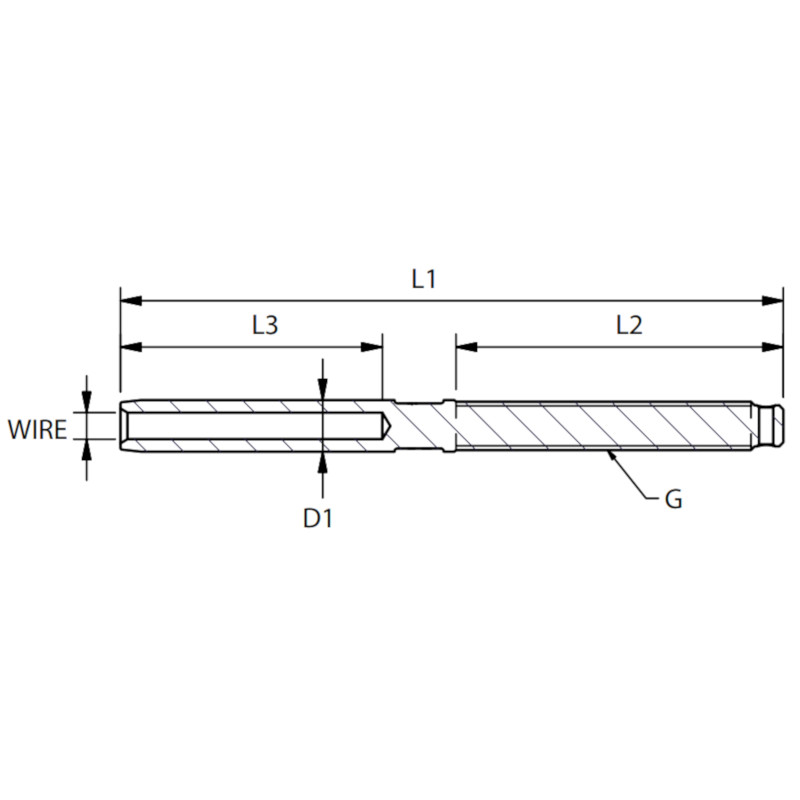

spec sheet Machine Swage Stud Metric Blue Wave
Part LH/RH
Thread		 G Wire Ø
mm		 D
mm		 L1
mm		 L2
mm		 L3
mm		 Break Load
Kg		 RRP
Inc VAT		 Unit
BW-900812-A RH 1/2 8 16 185 80 83 6100 £30.44 EACH
BW-910812-A LH 1/2 8 16 185 80 83 6100 £35.28 EACH
BW-900812 RH M12 8 16 185 80 83 5100 £33.84 EACH
BW-910812 LH M12 8 16 185 80 83 5100 £33.84 EACH
BW-900814 RH M14 8 16 194 83 89 6900 £34.49 EACH
BW-910814 LH M14 8 16 194 83 89 6900 £34.49 EACH
BW-900816-A RH 5/8 8 16 203 83 100 8700 £36.89 EACH
BW-910816-A LH 5/8 8 16 203 83 100 8700 £36.89 EACH
BW-900816 RH M16 8 16 203 88 100 8700 £34.97 EACH
BW-910816 LH M16 8 16 203 88 100 8700 £34.97 EACH
