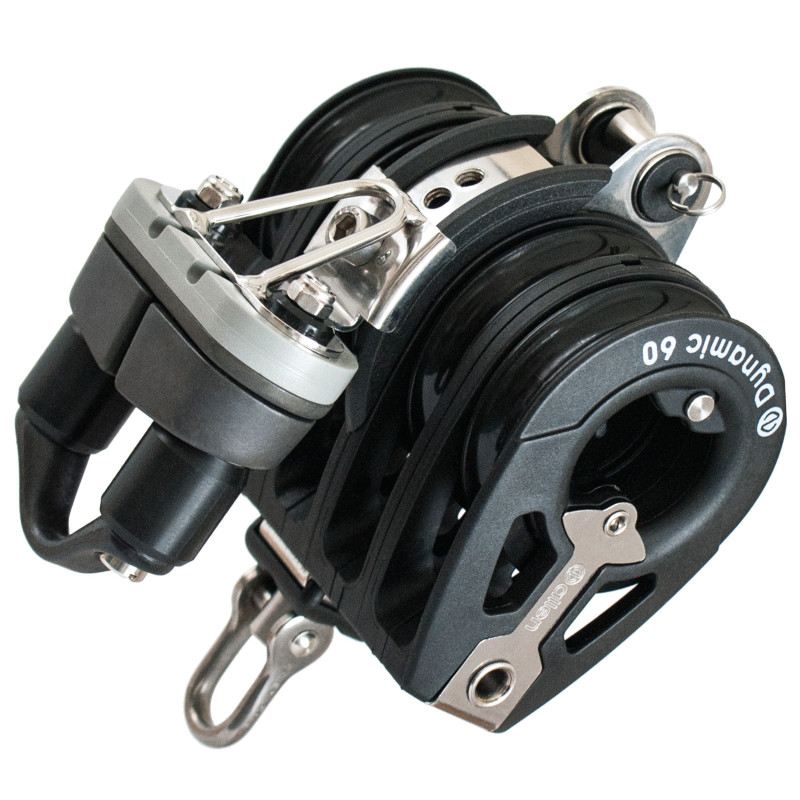

Allen 60mm Quint Ratchet Block c/w Becket & Cleat
60mm Quint ratchet block complete with becket and cleat.
- Switchable under load,
- Ratchet mechanism can be switched on or off,
- Swivel head can be locked in fixed position,
- Cheek converter allows port or starboard deck mounting,
- Sheave technology allows grip under load and easy release when load is decreased.
| Part | Length mm |
Line Ø mm |
Shackle Pin mm |
MWL Kg |
Break Load Kg |
Weight g |
RRP Inc VAT |
Unit | |
|---|---|---|---|---|---|---|---|---|---|
| AL-2169 | 148 | 6 - 12 | 6 | 600 | 1000 | 750 | £449.98 | each |
Quint Mainsheet System
· Shackle Pin Diameter: 6 mm
· Line Diameter: 5 - 12 mm
· Sheave Diameter: 60 mm
· Breaking Strain: 1,250 Kg
· AL-2069 & AL-2169 combined
Combine the engineering quality of Allen Dynamic Ball Bearing blocks with 60mm sheaves and a 10:1 purchase and you have the ultimate mainsheet control system for fast catamarans. Developed on foiling cats such as Nacra 17 and A Class by Team Allen sailors used on race winning boats in National and European F18 events.
The lower block features a switchable ratchet block to reduce fatigue and a cam cleat and fairlead for accurate cleating and easing under load.
The system gives the performance catamaran sailors need.
