Blue Wave Wheel Thimble

Wheel Thimble

For connecting rope to a fork terminal.

It opens wide opportunities for use with Dyneema rope from Ø3-12mm.

High polished stainless steel AISI 316.

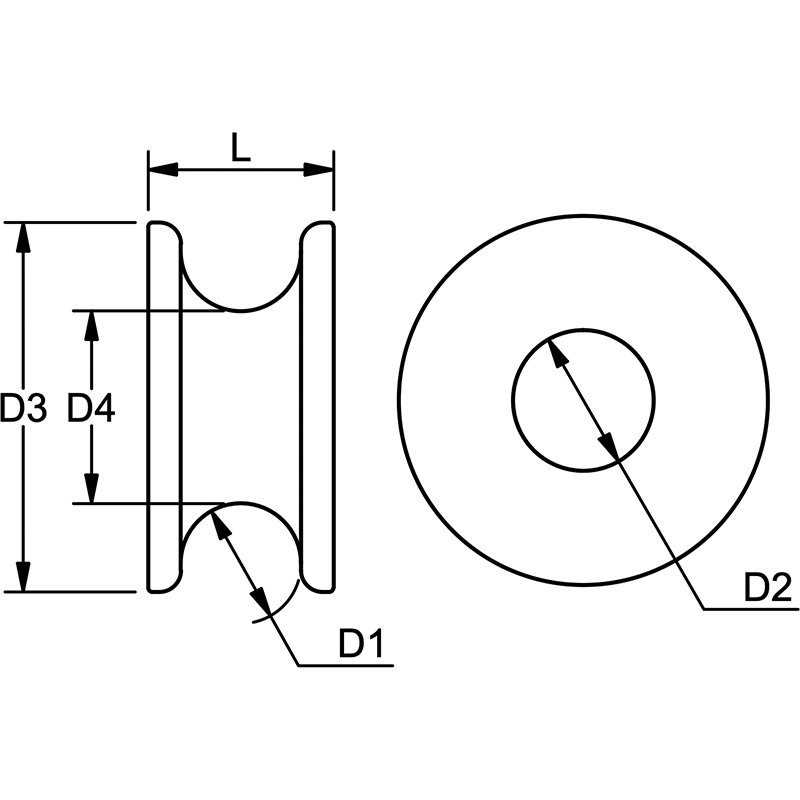

Part	Rope Ø mm	D1 mm	D2 mm	D3 mm	D4 mm	L mm	Break Load Kg	RRP Inc VAT	Unit
BW-RP1105	3 - 5	5	5.3	15.5	7.8	7.3	0.5	£11.89	EACH
BW-RP1106	4 - 6	6	6.5	17.5	9.0	9.2	0.8	£13.61	EACH
BW-RP1108	5 - 7	7	8.3	21.5	11.2	10.8	1.3	£15.38	EACH
BW-RP1110	6 - 8	8	9.7	25.5	13.2	12.0	1.9	£16.99	EACH
BW-RP1111	8 - 9	9	11.3	27.0	14.8	12.0	2.0	£21.32	EACH
BW-RP1113	8 - 10	10	13.0	32.5	17.0	13.5	3.2	£21.32	EACH
BW-RP1114	10 - 14	13	14.3	38.0	19.3	17.5	5.8	£30.56	Each

This picture shows the thimble in use
