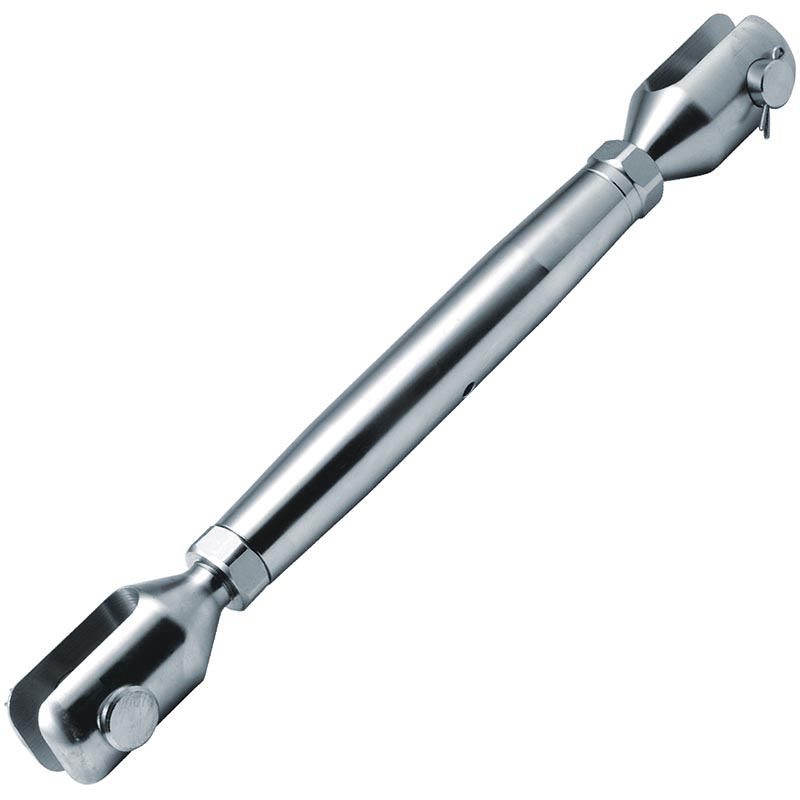

Blue Wave Metric Machined Fork & Fork Rigging Screw

Metric machined fork and fork rigging screw.

Metric thread

Note: All break loads are determined by clevis pin and thread.

High Polished Stainless Steel (AISI 316)

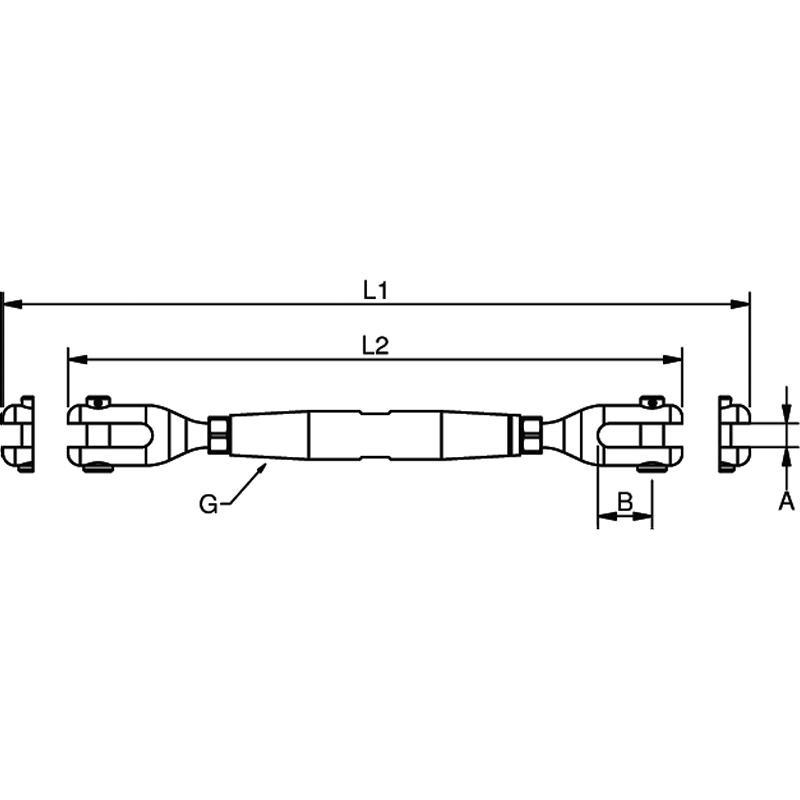

spec sheet Rigging Screw Metric Blue Wave

	Part	Description	Pin Ø mm	A mm	B mm	L1 mm	L2 mm	Break Load Kg	RRP Inc VAT	Unit
	BW-740020	M20	19	20	45	600	453	12000	£775.36	EACH
	BW-740022	M22	22	22	49	637	456	15000	£776.98	EACH
	BW-740024	M24	25	25	52	763	530	18000	£1,223.84	EACH
	BW-740027	M27	28	30	55	813	578	23000	£1,568.63	EACH
	BW-740030	M30	32	35	67	918	656	28000	£2,136.74	EACH
	BW-740036	M36	35	35	67	970	696	41000	£2,913.76	EACH
