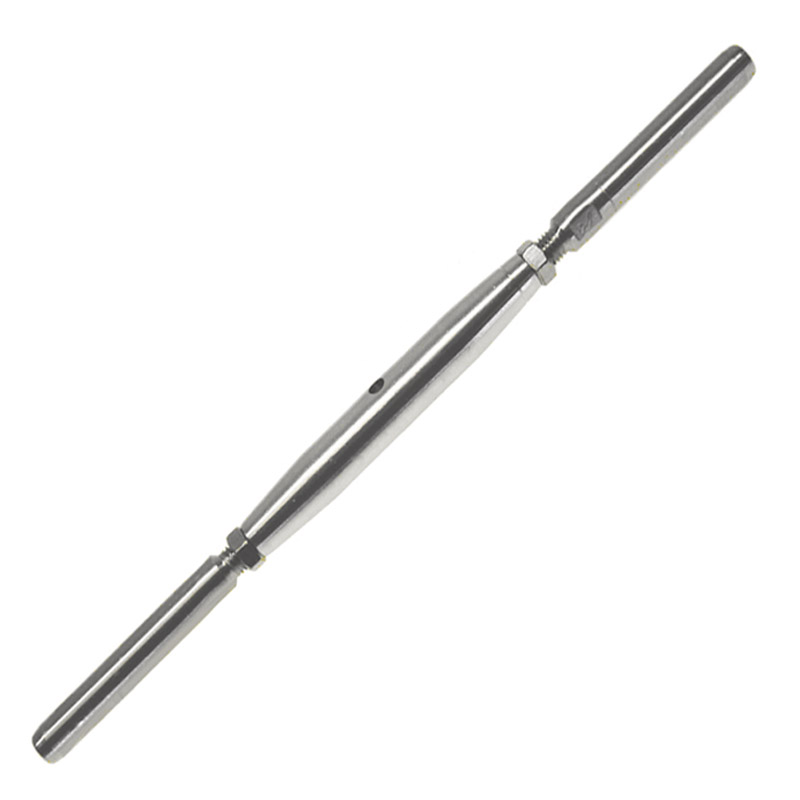

Blue Wave Metric Swage & Swage Rigging Screw
Metric swage and swage rigging screw.
Stainless steel AISI 316.
NB: M20 - M36 bodies feature bronze inserts.

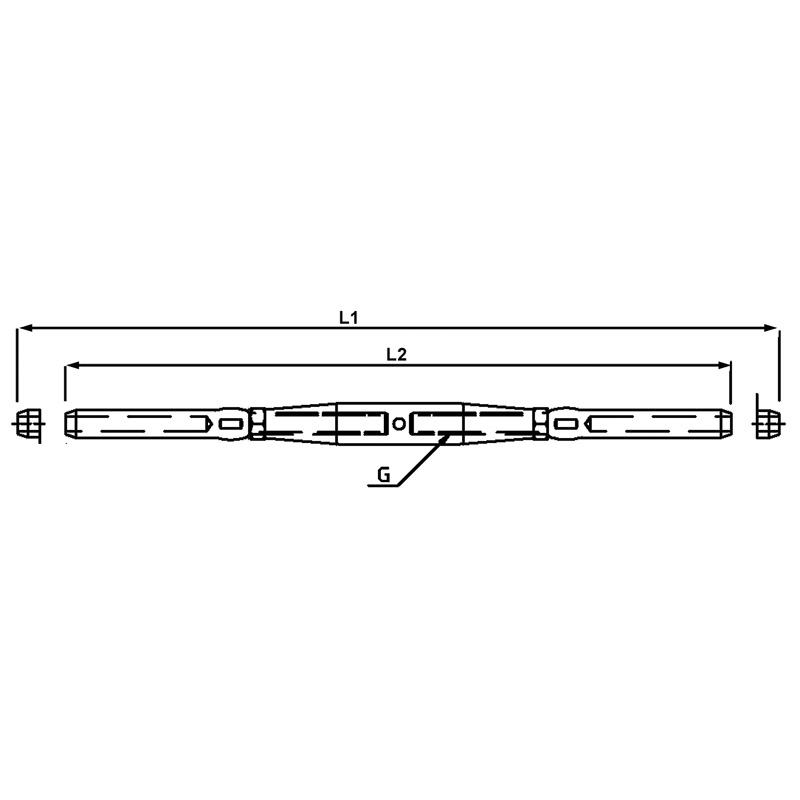

*Note:Terminal OD (mm)
| Part | G Metr. |
Wire Dia mm |
L1 mm |
L2 mm |
Break Load Kg. |
RRP Inc VAT |
Unit | |
|---|---|---|---|---|---|---|---|---|
| BW-120205-T | M5 | 2 | 223 | 162 | 800 | £29.71 | each | |
| BW-122505-T | M5 | 2.5 | 228 | 165 | 800 | £28.10 | each | |
| BW-120306-T | M6 | 3 | 274 | 204 | 1200 | £27.93 | each | |
| BW-120406-T | M6 | 4 | 284 | 214 | 1200 | £30.08 | each | |
| BW-120408-T | M8 | 4 | 312 | 242 | 1700 | £37.20 | each | |
| BW-120508-T | M8 | 5 | 328 | 258 | 2200 | £39.29 | each | |
| BW-120510-T | M10 | 5 | 350 | 267 | 2500 | £43.61 | each | |
| BW-120610-T | M10 | 6 | 380 | 297 | 3500 | £58.39 | each | |
| BW-120612-T | M12 | 6 | 410 | 327 | 5100 | £78.71 | each | |
| BW-120712-T | M12 | 7 | 454 | 346 | 5100 | £93.45 | each | |
| BW-120714-T | M14 | 7 | 488 | 369 | 6800 | £100.92 | each | |
| BW-120812-T | M12 | 8 | 492 | 382 | 5100 | £104.78 | each | |
| BW-120814-T | M14 | 8 | 521 | 402 | 6900 | £114.07 | each | |
| BW-120816-T | M16 | 8 | 548 | 418 | 8700 | £121.09 | each | |
| BW-121016-T | M16 | 10 | 566 | 436 | 9400 | £151.65 | each | |
| BW-121020-T | M20 | 10 | 620 | 466 | 9700 | £208.40 | each | |
| BW-121220-XT | M20 | 12* (21.4) | 658 | 504 | 14200 | £352.55 | each | |
| BW-121422-T | M22 | 14 | 820 | 639 | 15900 | £379.74 | each | |
| BW-121622-T | M22 | 16 | 870 | 689 | 18000 | £562.18 | each | |
| BW-121624-T | M24 | 16 | 979 | 746 | 19400 | £454.73 | each | |
| BW-121927-T | M27 | 19 | 1114 | 879 | 23000 | £754.11 | each | |
| BW-122230-T | M30 | 22 | 1245 | 983 | 28000 | £986.41 | each | |
| BW-122636-T | M36 | 26 | 1402 | 1128 | 41000 | £1353.80 | each |
