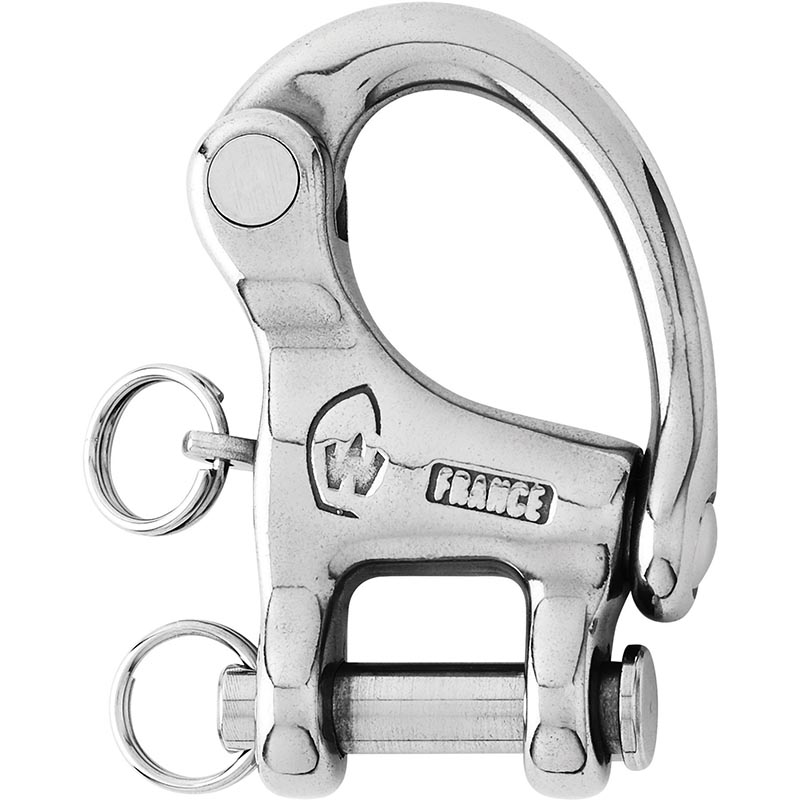

Wichard Forged Stainless Steel Fixed Clevis Snap Shackles

Forged stainless steel fixed clevis pin snap shackle.

Wichard High Resistance Snap Shackles, are the product of cutting edge technological development, they are simple, safe and strong.

The plunger pin is set captive into the hook during assembly and cannot become detached.

HR Snap Shackles should not be used for prolonged submersion.

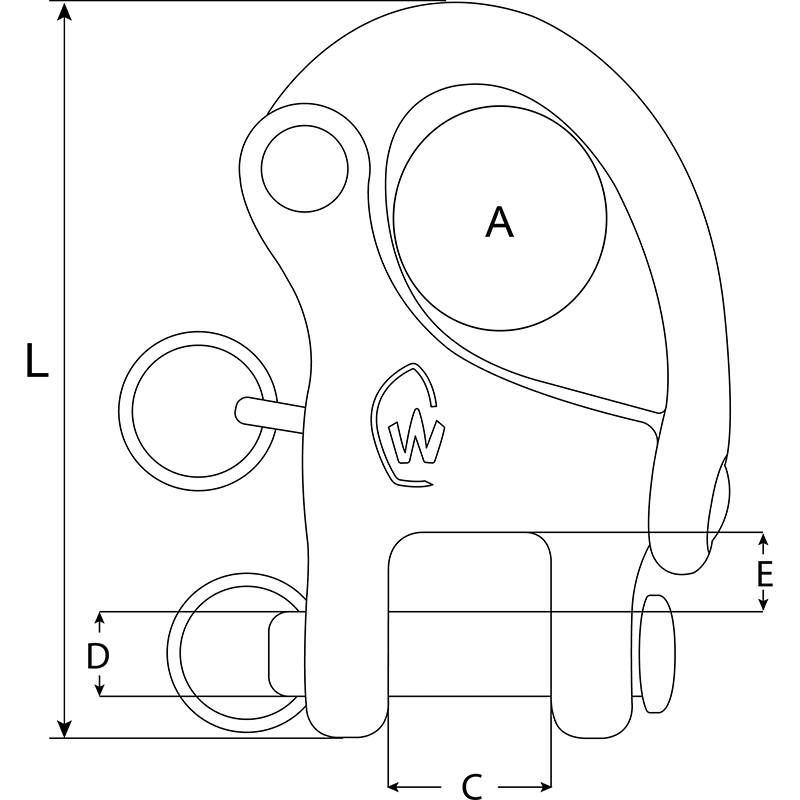

Part	L mm	A mm	B mm	C mm	Ø D mm	E mm	Work Load Kg	Break Load Kg	Weight Kg	RRP Inc VAT	Unit
WD-2293	52	16	8	13	6	8.1	960	2000	0.054	£67.40	each
WD-2295	70	21	11.5	16	8	11.5	1280	3850	0.130	£99.50	each
WD-2297	86	26	14	21	10	14	2800	7000	0.257	£161.89	each
