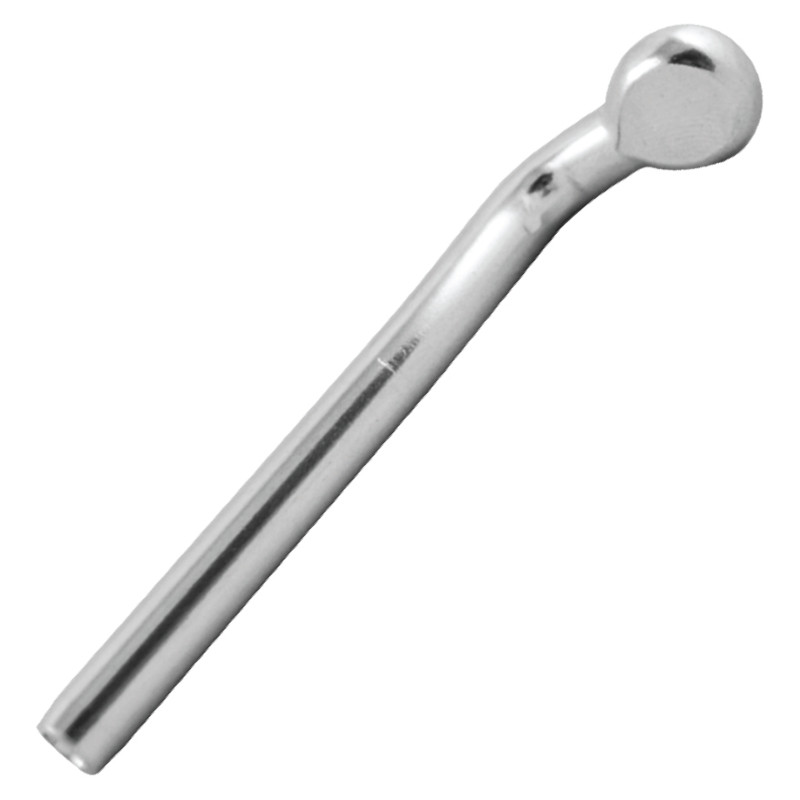

Blue Wave Swage Shroud Terminal

Swage shroud wire terminal.

The Blue Wave shroud terminals are all engraved with the wire size, the Blue Wave logo and the swage depth marking for faster and easier swaging.

Stainless steel AISI 316

*Note:Terminal OD (mm)

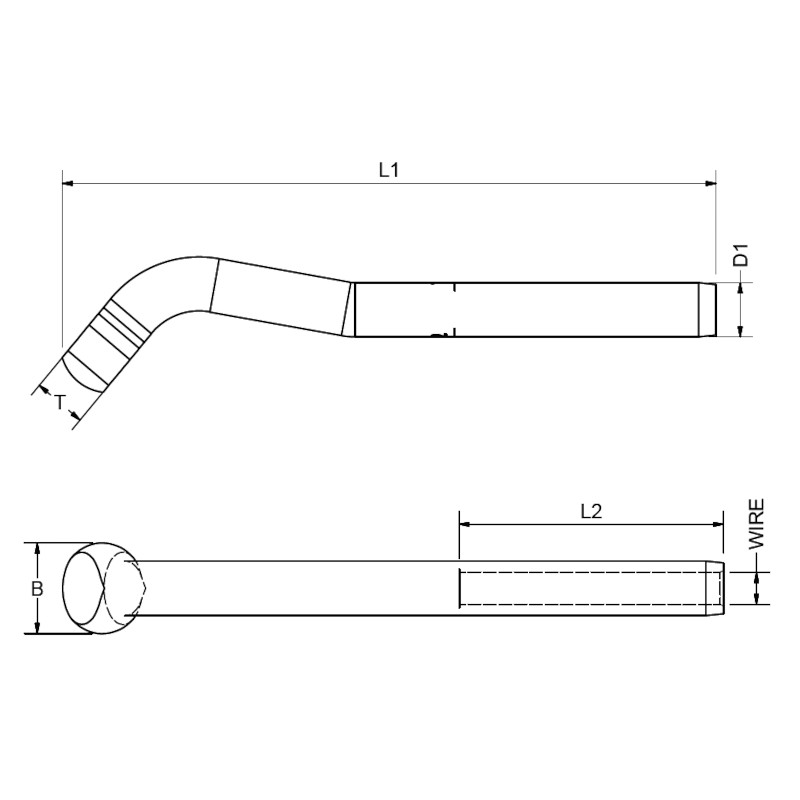

Part	Wire Ø mm	D1 mm	B mm	T mm	L1 mm	L2 mm	Blue Wave Back Plate	Navtec Back Plate	Break Load Kg	RRP Inc VAT	Unit
BW-SH610003	3.0	6.35	13.5	6.35	84.0	38	BW-616103	-	1300	£19.29	each
BW-SH610004	4.0	7.50	15.4	7.50	91.5	45	BW-616105	-	1700	£20.31	each
BW-SH610005	5.0	9.00	18.4	9.00	105.0	51	BW-616105	-	2400	£23.03	each
BW-SH610006	6.0	12.58	21.5	12.58	135.0	64	-	N841-M06	5500	£27.08	each
BW-SH610007	7.0	14.20	28.0	14.20	147.0	70	-	N841-M07	6800	£40.60	each
BW-SH610008	8.0	16.00	29.0	16.00	167.0	83	-	N841-M08	8000	£56.85	each
BW-SH610010	10.0	17.80	32.0	17.80	189.0	89	-	N841-M10	9700	£67.66	each
BW-SH610012	12.0*	21.40*	38.0	21.40	263.0	120	-	N841-M12	14200	£108.29	each
