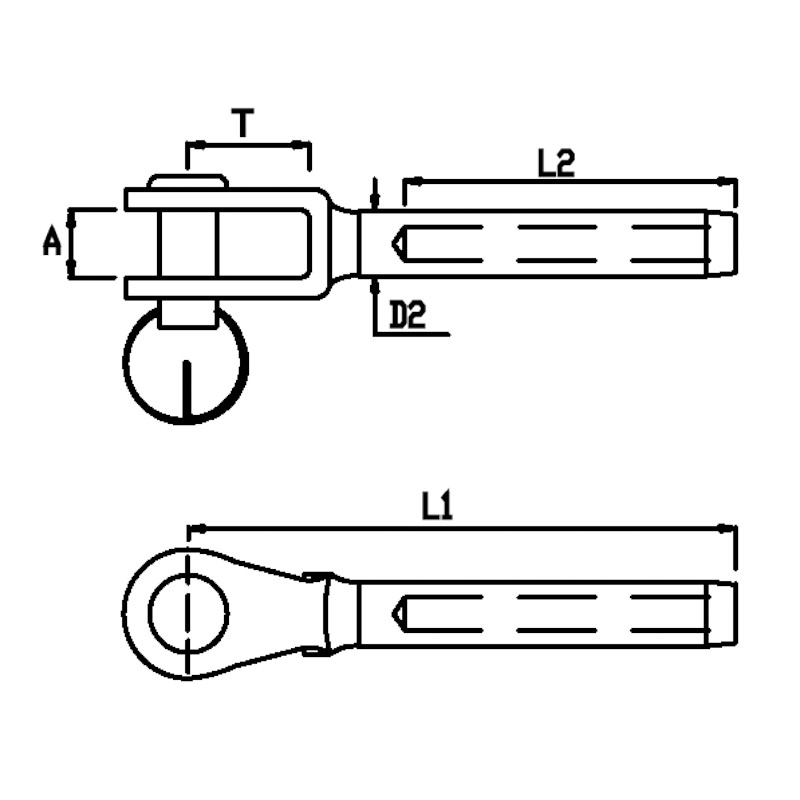

Blue Wave Swage Fork Welded
Swage welded fork wire terminal.
Stainless steel AISI 316.
*Note:Terminal OD (mm).
| Part | Wire Dia mm |
Pin Dia mm |
A mm |
D2 mm |
L1 mm |
L2 mm |
T mm |
Break Load Kg. |
RRP Inc VAT |
Unit | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BW-100502 | 2 | 5.0 | 7.5 | 5.5 | 58 | 24 | 12.0 | 800 | £16.16 | EACH | |
| BW-100525 | 2.5 | 5.0 | 7.5 | 5.5 | 58 | 27 | 12.0 | 800 | £14.05 | EACH | |
| BW-100503 | 3 | 5.0 | 7.5 | 6.35 | 67 | 38 | 12.0 | 800 | £12.36 | EACH | |
| BW-100603 | 3 | 6.0 | 9.5 | 6.35 | 68 | 38 | 13.0 | 1300 | £14.05 | EACH | |
| BW-106303 | 3 | 6.35 | 9.5 | 6.35 | 68 | 38 | 13.0 | 1300 | £14.68 | EACH | |
| BW-100504 | 4 | 5.0 | 7.5 | 7.5 | 71 | 45 | 12.0 | 800 | £11.75 | EACH | |
| BW-100604 | 4 | 6.0 | 9.5 | 7.5 | 73 | 45 | 13.0 | 1500 | £12.84 | EACH | |
| BW-100804 | 4 | 8.0 | 11 | 7.5 | 77 | 45 | 15.0 | 1700 | £16.22 | EACH | |
| BW-100605 | 5 | 6.0 | 9.5 | 9.0 | 83 | 51 | 13.0 | 1500 | £14.57 | EACH | |
| BW-100805 | 5 | 8.0 | 11 | 9.0 | 87 | 51 | 15.0 | 2400 | £17.30 | EACH | |
| BW-109505 | 5 | 9.5 | 12 | 9.0 | 91 | 51 | 19.0 | 2400 | £19.42 | EACH | |
| BW-100806 | 6 | 8.0 | 11 | 12.58 | 99 | 64 | 15.0 | 3200 | £24.43 | EACH | |
| BW-109506 | 6 | 9.5 | 12 | 12.58 | 104 | 64 | 19.0 | 3800 | £26.10 | EACH | |
| BW-101106 | 6 | 11.0 | 12 | 12.58 | 108 | 64 | 23.0 | 5000 | £32.03 | EACH | |
| BW-101206 | 6 | 12.0 | 14 | 12.58 | 110 | 64 | 25.0 | 5200 | £31.73 | EACH | |
| BW-101207 | 7 | 12.0 | 14 | 14.2 | 119 | 70 | 25.0 | 6500 | £39.67 | EACH | |
| BW-101307 | 7 | 12.7 | 14 | 14.2 | 119 | 70 | 25.0 | 6500 | £38.95 | EACH | |
| BW-101208 | 8 | 12.0 | 14 | 16.0 | 136 | 83 | 25.0 | 6500 | £49.48 | EACH | |
| BW-101308 | 8 | 12.7 | 14 | 16 | 136 | 83 | 25.0 | 6500 | £51.36 | EACH | |
| BW-101608 | 8 | 16.0 | 17 | 16.0 | 145 | 83 | 33.0 | 8000 | £56.87 | EACH | |
| BW-101410 | 10 | 14.0 | 18 | 17.8 | 151 | 89 | 32.0 | 9400 | £61.02 | EACH | |
| BW-101410-L | 10 | 14.0 | 22 | 17.8 | 149 | 89 | 33.0 | 9400 | £61.02 | EACH | |
| BW-101610 | 10 | 16.0 | 17 | 17.8 | 149 | 89 | 33.0 | 9400 | £65.51 | EACH | |
| BW-101612 | 12* (20.0) | 16.0 | 17 | 20.0 | 174 | 105 | 33.0 | 11200 | £134.41 | EACH | |
| BW-101612-L | 12* (20.0) | 16.0 | 22 | 20.0 | 171 | 105 | 31.0 | 11200 | £139.13 | EACH | |
| BW-101912 | 12* (20.0) | 19.0 | 24 | 20.0 | 189 | 105 | 48.0 | 11200 | £141.30 | EACH | |
| BW-101912-L | 12* (20.0) | 19.0 | 30 | 20.0 | 187 | 105 | 47.0 | 11200 | £148.56 | EACH | |
| BW-101912-X | 12* (21.4) | 19.0 | 24 | 21.4 | 205 | 120 | 48.0 | 14000 | £153.13 | EACH | |
| BW-101914-L | 14 | 19.0 | 25 | 30.0 | 221 | 140 | 47.0 | 15000 | £168.50 | EACH | |
| BW-102214 | 14 | 22.0 | 30 | 25.0 | 232 | 140 | 57.0 | 15000 | £262.60 | EACH | |
| BW-102514 | 14 | 25.4 | 30 | 25.0 | 235 | 140 | 62.0 | 15000 | £268.38 | EACH | |
| BW-102516 | 16 | 25.4 | 30 | 28.0 | 264 | 160 | 62.0 | 19000 | £292.85 | EACH | |
| BW-102819 | 19 | 28.0 | 32 | 34.5 | 309 | 200 | 68 | 27000 | £328.80 | EACH | |
| BW-102820 | 20 | 28.0 | 32 | 34.5 | 309 | 200 | 68 | 25000 | £329.06 | EACH | |
| BW-103222 | 22 | 32.0 | 35 | 40.5 | 354 | 230 | 76 | 34000 | £595.42 | EACH | |
| BW-103526 | 26 | 35.0 | 40 | 46.0 | 420 | 280 | 86 | 45000 | £856.61 | EACH |
