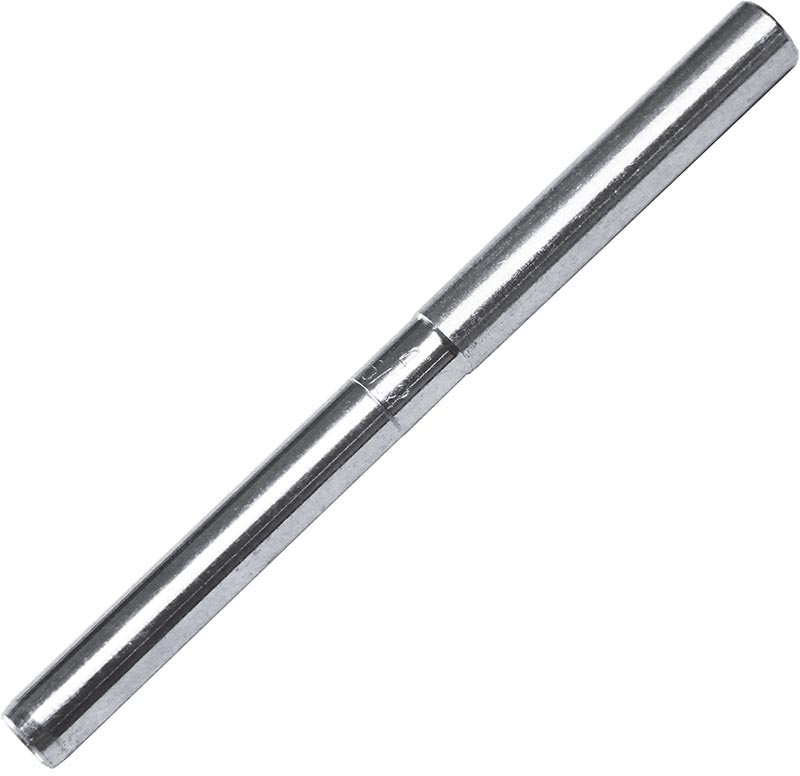

Blue Wave Inside Thread Terminal

Inside threaded terminal.

Often found to be a good alternative to a standard rigging screw are the inside thread terminals. The terminals are available with right handed threads and left handed on request!For ease of use when pressing or swingeing onto the wire, the terminals are marked with wire size and swage depth.The small inside thread terminals are for lighter architectural fixing of wires.

The terminals are available with left-handed and right handed threads, with dimensions reduced to a minimum.

These terminals are suitable for hand crimping with Blue Wave Arctool1 & Arctool4.

High Polished Stainless Steel - AISI 316

Left hand thread available on request.

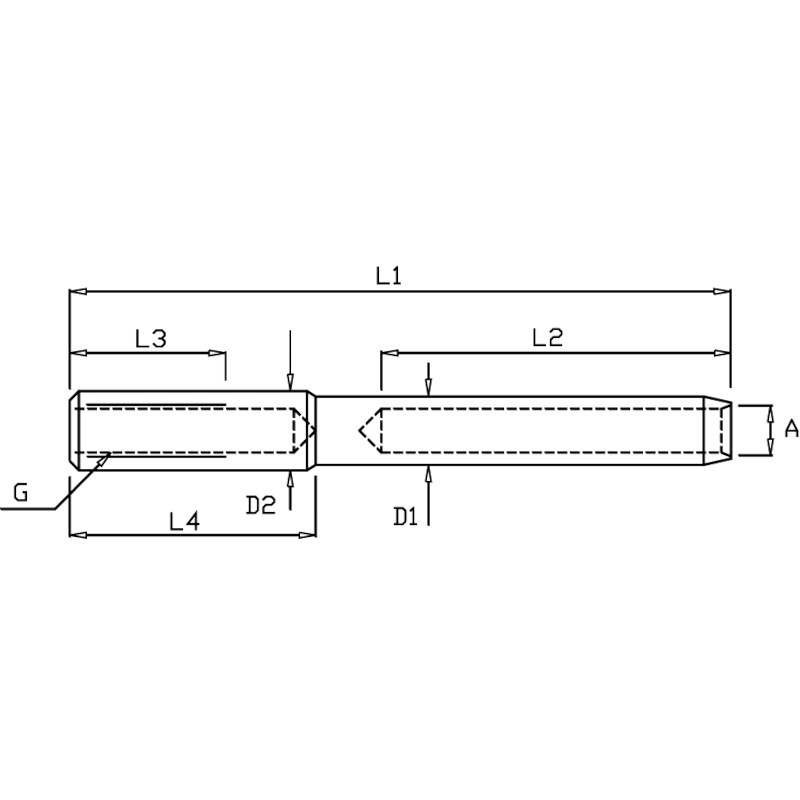

spec sheet Inside Thread Terminal Blue Wave

Part	Thread	G	Wire mm	L1 mm	L2 mm	L3 mm	L4 mm	D1 mm	D2 mm	Break Load kg	RRP Inc VAT	Unit
BW-980305	RH	M5	3	77	38	20	30	6.35	7.13	800	£14.05	EACH
BW-980305-L	RH	M5	3	92	38	35	45	6.35	7.13	800	£14.57	EACH
BW-980406	RH	M6	4	84	45	20.	30	7.50	8.00	1250	£13.36	EACH
BW-980406-L	RH	M6	4	99	45	35	45	7.50	8.00	1250	£14.57	EACH
BW-980506	RH	M6	5	90	51	20	30	9.00	9.00	1250	£14.57	EACH
BW-980506-L	RH	M6	5	105	51	35	45	9.00	9.00	1250	£15.66	EACH
BW-980508	RH	M8	5	112	51	40	53	9.00	12.58	2350	£18.66	EACH
BW-980608	RH	M8	6	110	64	25	35	12.58	12.58	2350	£20.63	EACH
BW-980608-L	RH	M8	6	126	64	40	50	12.58	12.58	2350	£24.41	EACH
BW-980610	RH	M10	6	127	64	40	53	12.58	16.00	3500	£29.08	EACH
BW-980810	RH	M10	8	140	83	40	50	16.00	16.00	3500	£33.05	EACH
BW-980812	RH	M12	8	147	83	40	53	16.00	18.00	5100	£42.11	EACH
BW-981012	RH	M12	10	150	89	40	50	17.80	17.80	5100	£45.04	EACH
BW-981016	RH	M16	10	152	89	40	53	17.80	17.80	8000	£50.27	EACH
